CONECCIÓN HEMBRA GIRATÓRIA MILIMÉTRICA - Ref.: 2206

Balflex

Disponible
Consulte Aqui...

Descripción

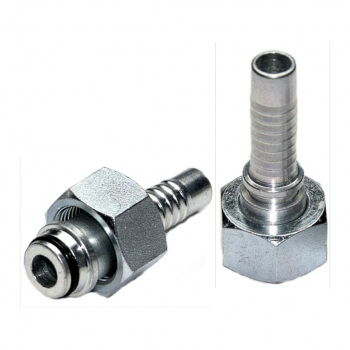

Terminal hembra giratória, rosca milimétrica, paso de rosca 1,5 y 2,0, vedación Boleada - DKO - JIC 37º,  hecho en acero carbono para prensado de mangueras hidráulica.

CÓDIGO MANGOPAR ROSCA MILIMÉTRICA DIÁMETRO DE LA MANGUERA
2206-12-04 12 mm 1/4
2206-12-04DKO 12 mm 1/4
2206-12-04JIC 12 mm 1/4
2206-12-06 12 mm 3/8
2206-12-06DKO 12 mm 3/8
2206-14-04 14 mm 1/4
2206-14-04DKO 14 mm 1/4
2206-14-04JIC 14 mm 1/4
2206-14-06 14 mm 3/8
2206-14-06DKO 14 mm 3/8
2206-14-06JIC 14 mm 3/8
2206-16-04 16 mm 1/4
2206-16-04DKO 16 mm 1/4
2206-16-06 16 mm 3/8
2206-16-06DKO 16 mm 3/8
2206-16-06JIC 16 mm 3/8
2206-18-06 18 mm 3/8
2206-18-06DKO 18 mm 3/8
2206-18-06JIC 18 mm 3/8
2206-18-08 18 mm 1/2
2206-18-08DKO 18 mm 1/2
2206-18-08JIC 18 mm 1/2
2206-20-06 20 mm 3/8
2206-20-06DKO 20 mm 3/8
2206-20-06JIC 20 mm 3/8
2206-20-08 20 mm 1/2
2206-20-08DKO 20 mm 1/2
2206-20-08JIC 20 mm 1/2
2206-22-06 22 mm 3/8
2206-22-06DKO 22 mm 3/8
2206-22-06JIC 22 mm 3/8
2206-22-08 22 mm 1/2
2206-22-08DKO 22 mm 1/2
2206-22-08JIC 22 mm 1/2
2206-24-08 24 mm 1/2
2206-24-08DKO 24 mm 1/2
2206-24-08JIC 24 mm 1/2
2206-24-10 24 mm 5/8
2206-24-10DKO 24 mm 5/8
2206-24-10JIC 24 mm 5/8
2206-26-06 26 mm 3/8
2206-26-08 26 mm 1/2
2206-26-10 26 mm 5/8
2206-26-10JIC 26 mm 5/8
2206-26-12 26 mm 3/4
2206-26-12JIC 26 mm 3/4
2206-28-10-2 28 mm 5/8
2206-28-10-DKO-2 28 mm 5/8
2206-28-10JIC 28 mm 5/8
2206-30-10 30 mm 5/8
2206-30-10-2 30 mm 5/8
2206-30-10-DKO 30 mm 5/8
2206-30-10-DKO-2 30 mm 5/8
2206-30-10JIC 30 mm 5/8
2206-30-12 30 mm 3/4
2206-30-12DKO 30 mm 3/4
2206-30-12DKO-2 30 mm 3/4
2206-30-12JIC 30 mm 3/4
